- Mã sản phẩm:
-
E50S8-1000-3-N-24 E50S8-1200-3-N-5 E50S8-2048-3-N-24-CS E50S8-35-3-T-24-CR E50S8-500-3-N-5-C E50S8-1000-3-N-24 E50S8-1200-3-T-24 E50S8-2048-3-N-5 E50S8-35-3-T-24-CS E50S8-500-3-N-5-CS E50S8-1000-3-N-24-C E50S8-1200-3-T-24-CS E50S8-2048-3-T-1 E50S8-35-3-T-5 E50S8-500-3-T-1 E50S8-1000-3-N-24-CR E50S8-1200-3-T-5 E50S8-2048-3-T-24 E50S8-35-3-V-24-CS E50S8-500-3-T-1-8M E50S8-1000-3-N-24-CS E50S8-1200-3-V-24 E50S8-2048-3-T-24-CS E50S8-35-6-L-5-CR E50S8-500-3-T-24 E50S8-1000-3-N-5 E50S8-1200-6-L-5 E50S8-2048-3-T-5 E50S8-3600-3-N-24 E50S8-500-3-T-24 E50S8-1000-3-N-5-C E50S8-120-3-T-24 E50S8-2048-3-V-24 E50S8-3600-3-N-24-CR E50S8-500-3-T-24 E50S8-1000-3-N-5-CS E50S8-12-2-N-24 E50S8-2048-3-V-24-CS E50S8-3600-3-N-24-CS E50S8-500-3-T-24 E50S8-1000-3-T-1 E50S8-12-2-T-24 E50S8-2048-3-V-5 E50S8-3600-3-N-5 E50S8-500-3-T-24-C E50S8-1000-3-T-24 E50S8-125-3-N-24 E50S8-2048-6-L-24 E50S8-3600-3-N-5-C E50S8-500-3-T-24-CR E50S8-1000-3-T-24 E50S8-125-3-N-5 E50S8-2048-6-L-24-C E50S8-3600-3-T-1 E50S8-500-3-T-24-CS E50S8-1000-3-T-24 E50S8-125-3-T-24 E50S8-2048-6-L-5 E50S8-3600-3-T-24-5M E50S8-500-3-T-5 E50S8-1000-3-T-24 E50S8-125-6-L-5 E50S8-2048-6-L-5-C E50S8-3600-3-T-24 E50S8-500-3-T-5-CR E50S8-1000-3-T-24 E50S8-1-2-N-24 E50S8-2048-6-L-5-CS E50S8-3600-3-T-24-8M E50S8-500-3-T-5-CS E50S8-1000-3-T-24 E50S8-1-2-N-24-CS E50S8-20-6-L-5 E50S8-3600-3-T-24-C E50S8-500-3-V-24 E50S8-1000-3-T-24 E50S8-1-2-N-5-CS E50S8-20-6-L-5-CR E50S8-3600-3-T-24-CR E50S8-500-3-V-5 E50S8-1000-3-T-24-C E50S8-1-2-T-24 E50S8-2-2-N-24 E50S8-3600-3-T-24-CS E50S8-500-6-L-24 E50S8-1000-3-T-24-CR E50S8-1-2-T-24-C E50S8-2-2-N-24-CS E50S8-3600-3-T-5 E50S8-500-6-L-5 E50S8-1000-3-T-24-CS E50S8-1-2-T-24-CS E50S8-2-2-T-24 E50S8-3600-3-T-5-CS E50S8-500-6-L-5 E50S8-1000-3-T-5 E50S8-1-2-T-5-C E50S8-2-2-T-24 E50S8-3600-3-V-24 E50S8-500-6-L-5-C E50S8-1000-3-T-5-C E50S8-1-4-L-5-CR E50S8-240-3-N-24 E50S8-3600-3-V-5 E50S8-500-6-L-5-CS E50S8-1000-3-V-24 E50S8-1500-3-N-24 E50S8-240-3-N-24-CS E50S8-3600-3-V-5-C E50S8-50-3-N-24 E50S8-1000-3-V-24 E50S8-1500-3-N-24-C E50S8-240-3-T-24 E50S8-3600-6-L-24 E50S8-50-3-N-24-CS E50S8-1000-3-V-24-CR E50S8-1500-3-N-24-CS E50S8-240-3-T-24-C E50S8-3600-6-L-5 E50S8-50-3-N-5 E50S8-1000-3-V-5 E50S8-1500-3-N-5 E50S8-240-3-V-24 E50S8-3600-6-L-5-C E50S8-50-3-T-24 E50S8-1000-6-L-24 E50S8-1500-3-T-24 E50S8-240-6-L-5 E50S8-3600-6-L-5-CR E50S8-50-3-T-24-C E50S8-1000-6-L-5 E50S8-1500-3-T-24-CR E50S8-2500-3-N-24 E50S8-3600-6-L-5-CS E50S8-50-3-T-24-CR E50S8-1000-6-L-5 E50S8-1500-3-V-24 E50S8-2500-3-N-24-C E50S8-360-2-V-24 E50S8-50-3-T-24-CS E50S8-1000-6-L-5-C E50S8-1500-6-L-5 E50S8-2500-3-N-5 E50S8-360-3-N-24 E50S8-50-3-T-5 E50S8-1000-6-L-5-CR E50S8-150-3-N-24 E50S8-2500-3-T-1 E50S8-360-3-N-24 E50S8-50-3-T-5-CS E50S8-1000-6-L-5-CS E50S8-150-3-N-24-CS E50S8-2500-3-T-24 E50S8-360-3-N-24 E50S8-50-3-V-24 E50S8-100-3-N-24 E50S8-150-3-N-5 E50S8-2500-3-T-24 E50S8-360-3-N-24-C E50S8-50-6-L-24 E50S8-100-3-N-24 E50S8-150-3-T-24 E50S8-2500-3-T-24-C E50S8-360-3-N-24-CR E50S8-50-6-L-24-C E50S8-100-3-N-24-C E50S8-150-3-T-24-CS E50S8-2500-3-T-24-CR E50S8-360-3-N-24-CS E50S8-50-6-L-5 E50S8-100-3-N-24-CR E50S8-150-3-T-5 E50S8-2500-3-T-24-CS E50S8-360-3-N-5 E50S8-512-3-N-24 E50S8-100-3-N-24-CS E50S8-150-3-V-24 E50S8-2500-3-T-5 E50S8-360-3-N-5-CR E50S8-512-3-N-24-CS E50S8-100-3-N-5 E50S8-150-6-L-5 E50S8-2500-3-T-5-CR E50S8-360-3-T-1 E50S8-512-3-T-24 E50S8-100-3-T-1 E50S8-1800-3-N-24 E50S8-2500-3-V-24 E50S8-360-3-T-1-8M E50S8-512-3-T-24-CS E50S8-100-3-T-1 E50S8-1800-3-N-24-C E50S8-2500-3-V-5 E50S8-360-3-T-24 E50S8-512-3-V-24 E50S8-100-3-T-24 E50S8-1800-3-N-24-CS E50S8-2500-3-V-5-CR E50S8-360-3-T-24-IP64 E50S8-512-6-L-5 E50S8-100-3-T-24 E50S8-1800-3-N-5 E50S8-2500-6-L-24 E50S8-360-3-T-24-5M E50S8-5-2-T-24 E50S8-100-3-T-24 E50S8-1800-3-T-24 E50S8-2500-6-L-5 E50S8-360-3-T-24-8M E50S8-6000-3-N-24 E50S8-100-3-T-24 E50S8-1800-3-T-24-C E50S8-2500-6-L-5-C E50S8-360-3-T-24-C E50S8-6000-3-N-24-CS E50S8-100-3-T-24-C E50S8-1800-3-T-5 E50S8-2500-6-L-5-CR E50S8-360-3-T-24-CR E50S8-6000-3-N-5 E50S8-100-3-T-24-CR E50S8-1800-3-V-24 E50S8-2500-6-L-5-CS E50S8-360-3-T-24-CS E50S8-6000-3-N-5-CS E50S8-100-3-T-24-CS E50S8-1800-3-V-5-CR E50S8-250-3-N-24 E50S8-360-3-T-5 E50S8-6000-3-T-24 E50S8-100-3-T-5 E50S8-1800-3-V-5-CS E50S8-250-3-N-24-CS E50S8-360-3-T-5-C E50S8-6000-3-T-5 E50S8-100-3-T-5-CS E50S8-1800-6-L-5 E50S8-250-3-N-5 E50S8-360-3-V-24 E50S8-6000-3-T-5-C E50S8-100-3-V-24 E50S8-1800-6-L-5-CS E50S8-250-3-T-24 E50S8-360-3-V-5 E50S8-6000-3-T-5-CR E50S8-100-3-V-24 E50S8-192-3-T-24 E50S8-250-3-T-24-C E50S8-360-6-L-24 E50S8-6000-3-T-5-CS E50S8-100-3-V-24-CR E50S8-2000-3-N-24 E50S8-250-3-T-5 E50S8-360-6-L-5 E50S8-6000-3-V-24 E50S8-100-3-V-5 E50S8-2000-3-N-24 E50S8-250-3-V-24 E50S8-360-6-L-5 E50S8-6000-3-V-5 E50S8-100-6-L-24 E50S8-2000-3-N-24-C E50S8-250-6-L-5 E50S8-360-6-L-5-C E50S8-6000-3-V-5-CR E50S8-100-6-L-24-C E50S8-2000-3-N-24-CS E50S8-25-3-T-24 E50S8-360-6-L-5-CR E50S8-6000-6-L-5 E50S8-100-6-L-5 E50S8-2000-3-N-5 E50S8-256-3-N-24 E50S8-360-6-L-5-CS E50S8-6000-6-L-5-C E50S8-100-6-L-5 E50S8-2000-3-N-5-CS E50S8-256-3-N-24-CR E50S8-400-3-N-24 E50S8-6000-6-L-5-CR E50S8-100-6-L-5-C E50S8-2000-3-T-1 E50S8-256-3-T-24 E50S8-400-3-N-24-CS E50S8-6000-6-L-5-CS E50S8-100-6-L-5-CR E50S8-2000-3-T-24 E50S8-256-3-T-24-CR E50S8-400-3-N-5 E50S8-600-2-T-24 E50S8-1024-3-N-24 E50S8-2000-3-T-24 E50S8-256-3-V-24 E50S8-400-3-T-24 E50S8-600-3-N-24 E50S8-1024-3-N-24 E50S8-2000-3-T-24 E50S8-256-6-L-5 E50S8-400-3-T-5 E50S8-600-3-N-24-CR E50S8-1024-3-N-24-C E50S8-2000-3-T-24-C E50S8-3000-3-N-24 E50S8-400-3-V-24 E50S8-600-3-N-24-CS E50S8-1024-3-N-24-CS E50S8-2000-3-T-24-CR E50S8-3000-3-N-24-C E50S8-400-3-V-5-CR E50S8-600-3-N-5 E50S8-1024-3-N-5 E50S8-2000-3-T-24-CS E50S8-3000-3-N-24-CR E50S8-400-3-V-5-CS E50S8-600-3-T-24 E50S8-1024-3-T-1 E50S8-2000-3-T-5 E50S8-3000-3-N-24-CS E50S8-400-6-L-5 E50S8-600-3-T-24 E50S8-1024-3-T-24 E50S8-2000-3-T-5-CS E50S8-3000-3-N-5 E50S8-400-6-L-5-CR E50S8-600-3-T-24-C E50S8-1024-3-T-24 E50S8-2000-3-V-24 E50S8-3000-3-T-24 E50S8-40-3-T-24 E50S8-600-3-T-24-CR E50S8-1024-3-T-24 E50S8-2000-3-V-24 E50S8-3000-3-T-24-CR E50S8-45-3-T-24 E50S8-600-3-T-24-CS E50S8-1024-3-T-24-C E50S8-2000-3-V-24-CS E50S8-3000-3-T-5 E50S8-5000-3-N-24 E50S8-600-3-T-5 E50S8-1024-3-T-24-CR E50S8-2000-3-V-5 E50S8-3000-3-V-24 E50S8-5000-3-N-24 E50S8-600-3-V-24 E50S8-1024-3-T-24-CS E50S8-2000-6-L-24 E50S8-3000-3-V-24 E50S8-5000-3-N-24 E50S8-600-6-L-5 E50S8-1024-3-T-5 E50S8-2000-6-L-24-CS E50S8-3000-3-V-5 E50S8-5000-3-N-24-C E50S8-600-6-L-5-CR E50S8-1024-3-T-5-CR E50S8-2000-6-L-5 E50S8-3000-6-L-5 E50S8-5000-3-N-24-CR E50S8-600-6-L-5-CS E50S8-1024-3-V-24 E50S8-2000-6-L-5-C E50S8-3000-6-L-5-C E50S8-5000-3-N-24-CS E50S8-60-1-N-24 E50S8-1024-6-L-24 E50S8-2000-6-L-5-CR E50S8-3000-6-L-5-CR E50S8-5000-3-N-5 E50S8-60-3-N-24 E50S8-1024-6-L-24-C E50S8-2000-6-L-5-CS E50S8-3000-6-L-5-CS E50S8-5000-3-N-5-CS E50S8-60-3-N-24-C E50S8-1024-6-L-5 E50S8-200-3-N-24 E50S8-300-3-N-24 E50S8-5000-3-T-1 E50S8-60-3-N-24-CR E50S8-1024-6-L-5 E50S8-200-3-N-24-C E50S8-300-3-N-24-CR E50S8-5000-3-T-24 E50S8-60-3-N-24-CS E50S8-1024-6-L-5 E50S8-200-3-N-5 E50S8-300-3-N-24-CS E50S8-5000-3-T-24-C E50S8-60-3-N-5 E50S8-1024-6-L-5-C E50S8-200-3-T-24 E50S8-300-3-N-5 E50S8-5000-3-T-24-CR E50S8-60-3-T-24 E50S8-1024-6-L-5-CR E50S8-200-3-T-24 E50S8-300-3-T-24 E50S8-5000-3-T-24-CS E50S8-60-3-T-24-C E50S8-1024-6-L-5-CS E50S8-200-3-T-24-CR E50S8-300-3-T-24 E50S8-5000-3-T-5 E50S8-60-3-T-24-CR E50S8-10-2-N-24 E50S8-200-3-T-24-CS E50S8-300-3-T-24-CR E50S8-5000-3-T-5-CR E50S8-60-3-T-24-CS E50S8-10-2-T-24 E50S8-200-3-T-5 E50S8-300-3-T-24-CS E50S8-5000-3-T-5-CS E50S8-60-3-T-5 E50S8-10-2-V-24 E50S8-200-3-T-5-CS E50S8-300-3-T-5 E50S8-5000-3-V-24 E50S8-60-3-V-24 E50S8-10-3-N-24 E50S8-200-3-V-24 E50S8-300-3-V-24 E50S8-5000-3-V-24-CS E50S8-60-3-V-5-CS E50S8-10-3-N-24-C E50S8-200-3-V-24 E50S8-300-3-V-24 E50S8-5000-3-V-5 E50S8-60-6-L-5 E50S8-10-3-N-24-CS E50S8-200-3-V-24-CR E50S8-300-6-L-5 E50S8-5000-3-V-5 E50S8-60-6-L-5-CR E50S8-10-3-N-5-CR E50S8-200-6-L-5 E50S8-300-6-L-5-CR E50S8-5000-6-L-24 E50S8-75-3-N-24 E50S8-10-3-T-24 E50S8-200-6-L-5-C E50S8-30-3-N-24 E50S8-5000-6-L-5 E50S8-75-3-N-5-CR E50S8-10-3-T-24-C E50S8-200-6-L-5-CR E50S8-30-3-N-24-CS E50S8-5000-6-L-5 E50S8-75-3-T-24 E50S8-10-3-T-24-CR E50S8-200-6-L-5-CS E50S8-30-3-N-5 E50S8-5000-6-L-5-C E50S8-75-3-T-5 E50S8-10-3-T-24-CS E50S8-20-2-N-24 E50S8-30-3-T-24 E50S8-5000-6-L-5-CR E50S8-8000-3-N-24 E50S8-10-3-T-5 E50S8-20-2-T-24 E50S8-30-3-T-24-CR E50S8-5000-6-L-5-CS E50S8-8000-3-N-24 E50S8-10-3-V-24 E50S8-20-3-N-24 E50S8-30-3-T-24-CS E50S8-500-3-N-24 E50S8-8000-3-N-24-CR E50S8-10-4-L-5 E50S8-20-3-N-24-CR E50S8-30-3-T-5 E50S8-500-3-N-24 E50S8-8000-3-N-24-CS E50S8-10-6-L-5 E50S8-20-3-N-5-CR E50S8-30-3-T-5-CS E50S8-500-3-N-24-C E50S8-8000-3-N-5 E50S8-10-6-L-5-CR E50S8-20-3-T-24 E50S8-30-3-V-24 E50S8-500-3-N-24-CR E50S8-8000-3-N-5-C E50S8-10-6-L-5-CS E50S8-20-3-T-5 E50S8-30-6-L-5 E50S8-500-3-N-24-CS E50S8-8000-3-N-5-CR E50S8-1200-3-N-24 E50S8-2048-3-N-24 E50S8-35-3-N-24 E50S8-500-3-N-5 E50S8-8000-3-N-5-CS E50S8-8000-3-T-24 E50S8-8000-3-T-24-CS E50S8-8000-3-V-24 E50S8-8000-6-L-5 E50S8-8000-6-L-5-CS E50S8-8000-3-T-24-C E50S8-8000-3-T-5 E50S8-8000-3-V-5 E50S8-8000-6-L-5-C E50S8-8000-3-T-24-CR E50S8-8000-3-T-5-CS E50S8-8000-3-V-5-CR E50S8-8000-6-L-5-CR - Đường kính ngoài trục : Ø8mm
- Tần số đáp ứng tối đa : 300kHz
- Độ phân giải cho phép tối đa : 5000rpm
- Mô-men khởi động : Max. 70gf.cm(max. 0.00686N.m)
- Độ phân giải : 300P/R
- Ngõ ra điều khiển : Totem pole
- Nguồn cấp : 12-24VDC ±5%(sóng P-P: max. 5%)
- Loại kết nối : Loại cáp trục
- Cấu trúc bảo vệ : IP50

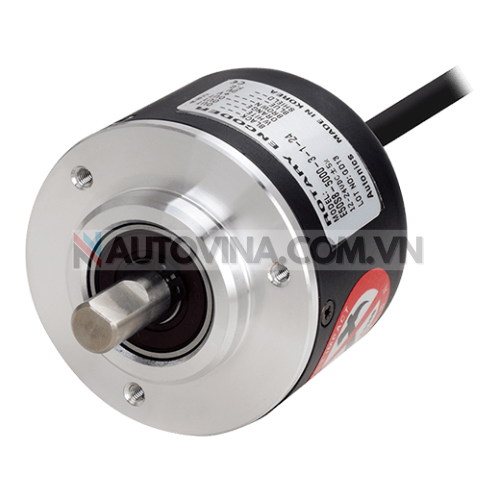

Bộ mã hóa vòng quay loại tương đối ( Quang) E50S8-300-3-T-24 Autonics
- Đường kính ngoài trục : Ø8mm
- Tần số đáp ứng tối đa : 300kHz
- Độ phân giải cho phép tối đa : 5000rpm
- Mô-men khởi động : Max. 70gf.cm(max. 0.00686N.m)
- Độ phân giải : 300P/R
- Ngõ ra điều khiển : Totem pole
- Nguồn cấp : 12-24VDC ±5%(sóng P-P: max. 5%)
- Loại kết nối : Loại cáp trục
- Cấu trúc bảo vệ : IP50
Liên hệ
[devvn_quickbuy](Đơn giá chưa bao gồm chi phí vận chuyển)
BẢNG DỮ LIỆU
| Đường kính ngoài trục | Ø8mm |
|---|---|
| Tần số đáp ứng tối đa | 300kHz |
| Độ phân giải cho phép tối đa | 5000rpm |
| Mô-men khởi động | Max. 70gf.cm(max. 0.00686N.m) |
| Độ phân giải | 300P/R |
| Pha ngõ ra | A, B, Z |
| Ngõ ra điều khiển | Totem pole |
| Nguồn cấp | 12-24VDC ±5%(sóng P-P: max. 5%) |
| Loại kết nối | Loại cáp trục |
| Cấu trúc bảo vệ | IP50 |
| Tiêu chuẩn |  |
| Môi trường_Nhiệt độ xung quanh | -10 đến 70℃, bảo quản: -25 đến 85℃ |
| Môi trường_Độ ẩm xung quanh | 35 đến 85%RH, bảo quản: 35 đến 90%RH |
| Phụ kiện | Khớp nối Ø8mm, giá đỡ |
| Trọng lượng | Xấp xỉ 363g(Xấp xỉ 275g) |
